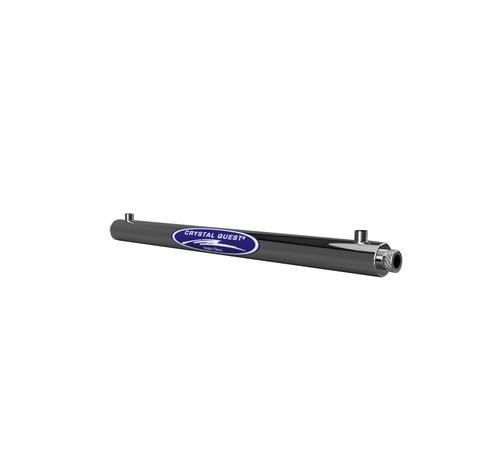

Crystal Quest 12 GPM Ultraviolet Water Sterilizer System-110 V

CRYSTAL QUEST® 12 GPM Ultraviolet Water Sterilizer System manufactured with axial flow reactors in 304 stainless steel and comes with 3/4” MNPT connections.

The hard glass germicidal lamps provide an economical way of treating water requiring a 99.99% reduction of bacteria and virus and protozoa. This process is accomplished without adding any harmful chemicals to your drinking water.

CRYSTAL QUEST® Ultraviolet Water Sterilizer System is the most ecological way of treating your water… and all for just pennies a day!  Key Features and Benefits:

• No chemicals added and no byproducts to the water supply(i.e. chlorine + organics = trihalomethanes).

• Environmentally and user friendly, no dangerous chemicals to store, no risks of overdosing.

• Easy installation, only two water lines and a power connection.

• No change in taste, odor, pH or conductivity or the general chemistry of the water.

• More effective against viruses than chlorine.

• Extremely economical, hundreds of gallons may be treated for each penny of operating cost.

• Immediate treatment process, no need for holding tanks, long retention times, etc.

• Automatic operation without special attention or measurement, operator friendly.

• Simplicity and ease of maintenance and annual lamp replacement, no moving parts to wear out.

• No handling of toxic chemicals, no need for specialized storage requirements.

• Low initial capital cost as well as reduced operating expenses when compared with similar technologies such as ozone, chlorine, etc.

Ultraviolet Water Sterilizer is specifically designed to remove microorganisms that can range from bacteria and viruses to algae and protozoa. It's advanced UV treatment is capable of disinfecting water faster than chlorine without the use of retention tanks and harmful chemicals to your drinking water.

The UV lamp emits powerful ultraviolet light and incorporates natural ultraviolet light energy to eradicate microbiological contamination. Water enters through the bottom part of the reactor chamber and swirls around a high output, low pressure mercury vapor lamp thermally protected by a quartz sleeve. Energy components contained in microorganisms absorb the light energy; this disrupts the DNA and prevents reproduction.

Great for well water and as an add on to any whole house water filter or any other 12 GPM flow filtration application.



  Specifications

Dimension	3"x40"
Inlet/Outlet Port Size	3/4" MNPT
Flow Rate (GPM)	12
Electrical	110-130v/50-60 Hz
Maximum Operating Pressure	125 psi
Lamp Life	9000 hrs ( approx. 1 year of use)
Audible Lamp Failure	Yes
LED "power-on" indicator	Yes



Replacement Bulb
